Teaching an Introductory Data Science course with tidyverse workshop

Teaching an Introductory Data Science course with tidyverse workshopData VisualizationDr. Mine Dogucu2021-12-151 / 62

2 / 62

Data Visualizations

are graphical representations of data

3 / 62

Data Visualizations

are graphical representations of data
use different colors, shapes, and the coordinate system to summarize data

3 / 62

Data Visualizations

are graphical representations of data
use different colors, shapes, and the coordinate system to summarize data
tell a story

3 / 62

Data Visualizations

are graphical representations of data
use different colors, shapes, and the coordinate system to summarize data
tell a story
are useful for exploring data

3 / 62

First I go over different types of visualizations so that students can interpret what they see in the visuals.

The following is a useful resource for understanding histograms.

Exploring Histograms Interactively

4 / 62

ggplot is based on grammar of graphics.

5 / 62

Data

glimpse(titanic)

## Rows: 891
## Columns: 6
## $ survived <lgl> FALSE, TRUE, TRUE, TRUE, FALSE, FALSE, FALSE,…
## $ pclass   <chr> "Third", "First", "Third", "First", "Third", …
## $ sex      <fct> sex, sex, sex, sex, sex, sex, sex, sex, sex, …
## $ age      <dbl> 22, 38, 26, 35, 35, NA, 54, 2, 27, 14, 4, 58,…
## $ fare     <dbl> 7.2500, 71.2833, 7.9250, 53.1000, 8.0500, 8.4…
## $ embarked <fct> Southampton, Cherbourg, Southampton, Southamp…

The data frame has been cleaned for you.

6 / 62

Visualizing a Single Categorical Variable

7 / 62

If you could speak to R in English, how would you tell R to make this plot for you?

If you had the data and had to draw this bar plot by hand, what would you do?

8 / 62

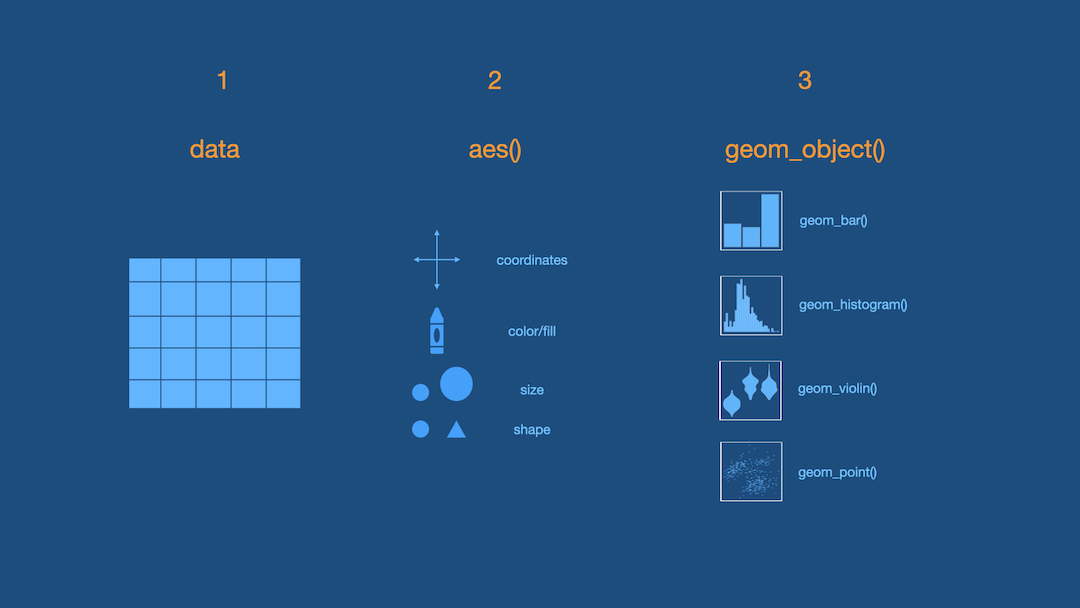

3 Steps of Making a Basic ggplot

1.Pick data

2.Map data onto aesthetics

3.Add the geometric layer

9 / 62

Step 1 - Pick Data

ggplot(data = titanic)

10 / 62

Step 2 - Map Data to Aesthetics

ggplot(data = titanic,
       aes(x = pclass))

11 / 62

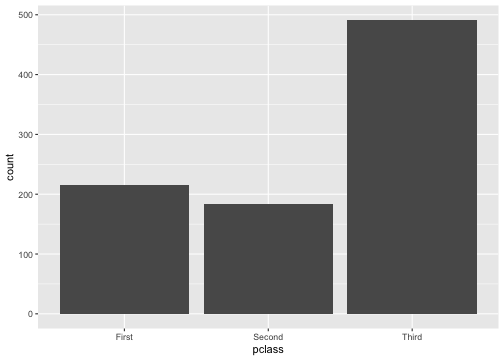

Step 3 - Add the Geometric Layer

ggplot(data = titanic,
       aes(x = pclass)) +
  geom_bar()

12 / 62

Create a ggplot using the titanic data frame.
Map the pclass to the x-axis.
Add a layer of a bar plot.

ggplot(data = titanic,
       aes(x = pclass)) +
  geom_bar()

13 / 62

Visualizing a Single Numeric Variable

14 / 62

## `stat_bin()` using `bins = 30`. Pick better value with
## `binwidth`.

Create a ggplot using the titanic data frame.
Map the fare to the x-axis.
Add a layer of a histogram.

ggplot(data = titanic,
       aes(x = fare)) +
  geom_histogram()

15 / 62

Step 1 - Pick Data

ggplot(data = titanic)

16 / 62

Step 2 - Map Data to Aesthetics

ggplot(data = titanic,
       aes(x = fare))

17 / 62

Step 3 - Add the Geometric Layer

ggplot(data = titanic,
       aes(x = fare)) +
  geom_histogram()

## `stat_bin()` using `bins = 30`. Pick better value with
## `binwidth`.

18 / 62

What is this warning?

## `stat_bin()` using `bins = 30`. Pick better value with
## `binwidth`.

19 / 62

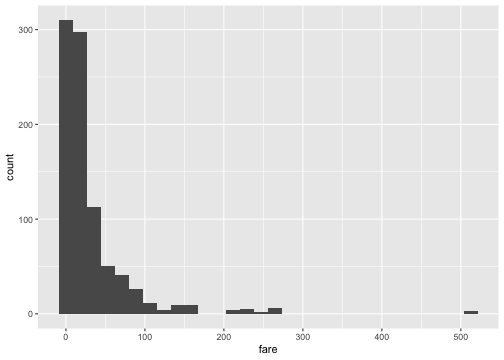

ggplot(data = titanic,
       aes(x = fare)) +
  geom_histogram(binwidth = 15)

20 / 62

21 / 62

🌈

Pick your favorite color(s) from the list at:

bit.ly/colors-r

22 / 62

ggplot(data = titanic,
       aes(x = fare)) +
  geom_histogram(binwidth = 15,
                 color = "white")

23 / 62

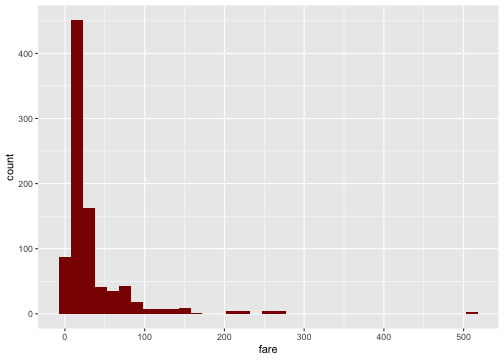

ggplot(data = titanic,
       aes(x = fare)) +
  geom_histogram(binwidth = 15,
                 fill = "darkred")

24 / 62

ggplot(data = titanic,
       aes(x = fare)) +
  geom_histogram(binwidth = 15,
                 color = "white",
                 fill = "darkred")

25 / 62

Visualizing Two Categorical Variables

26 / 62

Stacked Bar-Plot

ggplot(data = titanic,
       aes(x = pclass,
           fill = survived)) +
  geom_bar()

27 / 62

Standardized Bar Plot

ggplot(data = titanic,
       aes(x = pclass,
           fill = survived)) +
  geom_bar(position = "fill")

Note that y-axis is no longer count but we will learn how to change that later.

28 / 62

Dodged Bar Plot

ggplot(data = titanic,
       aes(x = pclass,
           fill = survived)) +
  geom_bar(position = "dodge")

Note that y-axis is no longer count but we will change that later.

29 / 62

New Data

Artwork by @allison_horst

30 / 62

New Data

glimpse(penguins)

## Rows: 344
## Columns: 8
## $ species           <fct> Adelie, Adelie, Adelie, Adelie, Adel…
## $ island            <fct> Torgersen, Torgersen, Torgersen, Tor…
## $ bill_length_mm    <dbl> 39.1, 39.5, 40.3, NA, 36.7, 39.3, 38…
## $ bill_depth_mm     <dbl> 18.7, 17.4, 18.0, NA, 19.3, 20.6, 17…
## $ flipper_length_mm <int> 181, 186, 195, NA, 193, 190, 181, 19…
## $ body_mass_g       <int> 3750, 3800, 3250, NA, 3450, 3650, 36…
## $ sex               <fct> male, female, female, NA, female, ma…
## $ year              <int> 2007, 2007, 2007, 2007, 2007, 2007, …

31 / 62

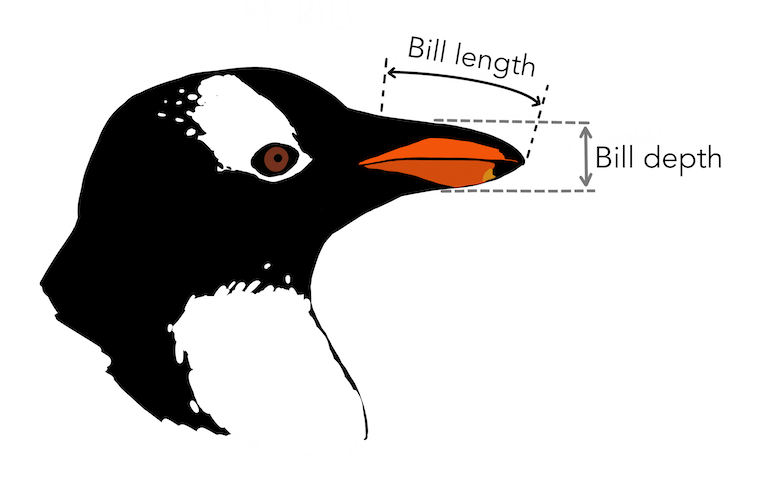

Artwork by @allison_horst

32 / 62

Visualizing a single numerical and single categorical variable.

33 / 62

## Warning: Removed 2 rows containing non-finite values
## (stat_ydensity).

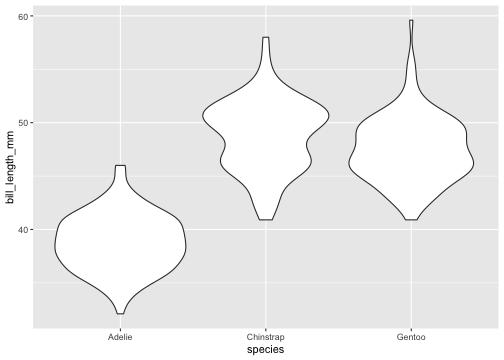

Create a ggplot using the penguins data frame.
Map the species to the x-axis and bill_length_mm to the y-axis.
Add a layer of a violin plot.

ggplot(penguins,
       aes(x = species,
           y = bill_length_mm))  +
  geom_violin()

34 / 62

## Warning: Removed 2 rows containing non-finite values
## (stat_boxplot).

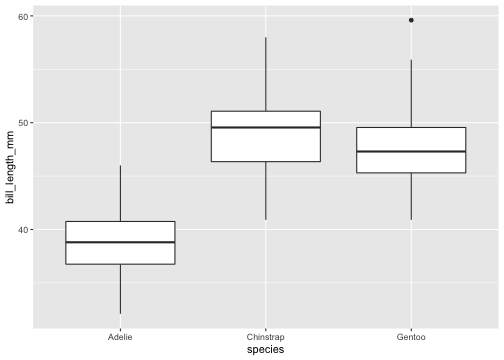

Create a ggplot using the penguins data frame.
Map the species to the x-axis and bill_length_mm to the y-axis.
Add a layer of a box plot.

ggplot(penguins,
       aes(x = species,
           y = bill_length_mm))  +
  geom_boxplot()

35 / 62

Note: Violin plots display densities, not counts!

36 / 62

Visualizing Two Numerical Variables

37 / 62

ggplot(penguins,
       aes(x = bill_depth_mm,
           y = bill_length_mm))  +
  geom_point()

## Warning: Removed 2 rows containing missing values (geom_point).

38 / 62

Considering More Than Two Variables

39 / 62

ggplot(penguins,
       aes(x = bill_depth_mm,
           y = bill_length_mm,
           color = species)) +
  geom_point()

## Warning: Removed 2 rows containing missing values (geom_point).

40 / 62

ggplot(penguins,
       aes(x = bill_depth_mm,
           y = bill_length_mm,
           shape = species)) +
  geom_point()

## Warning: Removed 2 rows containing missing values (geom_point).

41 / 62

ggplot(penguins,
       aes(x = bill_depth_mm,
           y = bill_length_mm,
           shape = species)) +
  geom_point()

## Warning: Removed 2 rows containing missing values (geom_point).

42 / 62

ggplot(penguins,
       aes(x = bill_depth_mm,
           y = bill_length_mm,
           shape = species,
           color = species)) +
  geom_point()

## Warning: Removed 2 rows containing missing values (geom_point).

43 / 62

ggplot(penguins,
       aes(x = bill_depth_mm,
           y = bill_length_mm,
           shape = species,
           color = species,
           size = body_mass_g)) +
  geom_point()

## Warning: Removed 2 rows containing missing values (geom_point).

44 / 62

45 / 62

Practice

Using either the babies, titanic or penguins data frame ask a question that you are interested in answering. Visualize data to get a visual answer to the question. What is the visual telling you? Note all of this down in your lecture notes.

46 / 62

Using the penguins data,
Map bill depth to x-axis, bill length to y-axis, species to shape and color.
Add a layer of points and set the size of the points to 4.

ggplot(penguins,
       aes(x = bill_depth_mm,
           y = bill_length_mm,
           shape = species,
           color = species)) +
  geom_point(size = 4)

47 / 62

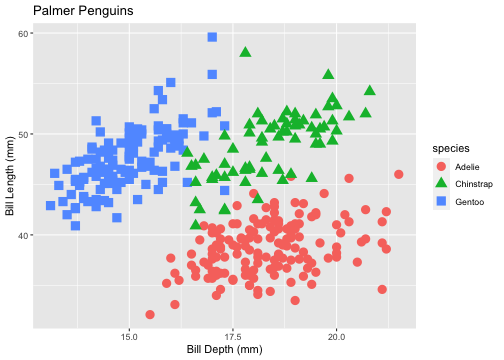

Labs

Using the penguins data,
Map bill depth to x-axis, bill length to y-axis, species to shape.
Add a layer of points and set the size of the points to 4.
Add labels to x-axis (Bill Depth(mm)), y-axis (Bill Length(mm)), and the title of the plot (Palmer Penguins).

ggplot(penguins,
       aes(x = bill_depth_mm,
           y = bill_length_mm,
           shape = species,
           color = species)) +
  geom_point(size = 4) +
  labs(x = "Bill Depth (mm)",
       y = "Bill Length (mm)",
       title = "Palmer Penguins")

48 / 62

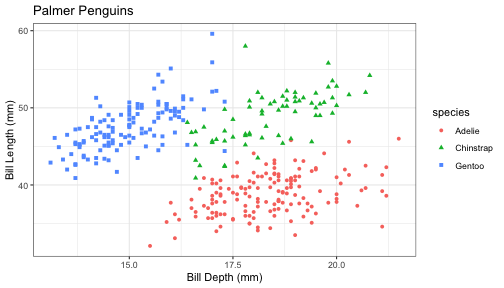

ggplot(penguins,
       aes(x = bill_depth_mm,
           y = bill_length_mm,
           shape = species,
           color = species)) +
  geom_point() +
  labs(x = "Bill Depth (mm)",
       y = "Bill Length (mm)",
       title = "Palmer Penguins") +
  theme_bw()

49 / 62

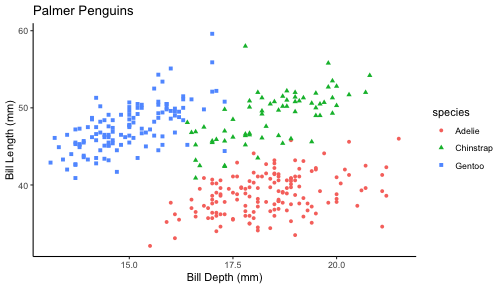

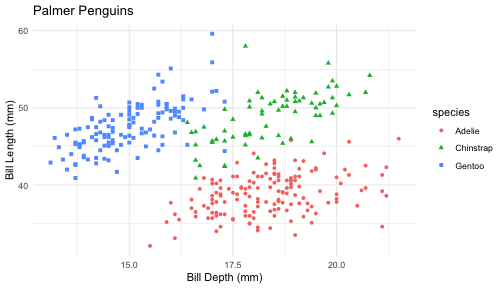

Themes

50 / 62

ggplot(penguins,
       aes(x = bill_depth_mm,
           y = bill_length_mm,
           shape = species,
           color = species)) +
  geom_point() +
  labs(x = "Bill Depth (mm)",
       y = "Bill Length (mm)",
       title = "Palmer Penguins") +
  theme_bw() +
  theme(text = element_text(size=20))

51 / 62

?theme

52 / 62

ggplot(penguins,
       aes(x = bill_depth_mm,
           y = bill_length_mm,
           shape = species,
           color = species)) +
  geom_point(size = 4) +
  facet_grid(.~species)

53 / 62

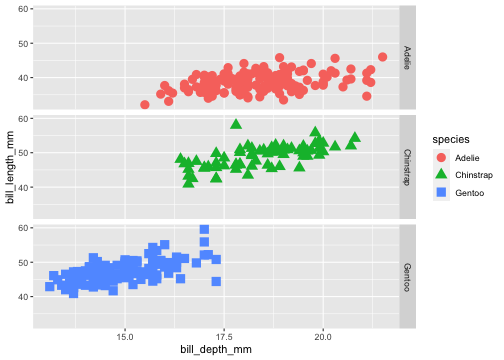

ggplot(penguins,
       aes(x = bill_depth_mm,
           y = bill_length_mm,
           shape = species,
           color = species)) +
  geom_point(size = 4) +
  facet_grid(species~.)

54 / 62

ggplot(penguins,
       aes(x = bill_depth_mm,
           y = bill_length_mm)) +
  geom_point() +
  xlim(0, 30) +
  ylim(0,70)

55 / 62

code style

The tidyverse style guide has the following convention for writing ggplot2 code.

The plus sign for adding layers + always has a space before it and is followed by a new line.

The new line is indented by two spaces. RStudio does this automatically for you.

56 / 62

Top Ten Dos and Don't for Charts and Graphs

57 / 62

Check out the ggplot flipbook for some inspiration. Find your favorite new function/feature. Share it with your neighbor.

58 / 62

ggplot extensions

patchwork combining plots into a single plot
gganimate animated graphics
ggthemes additional set of themes
ggtext improved text rendering support for ggplot2

There are more extensions

59 / 62

Detour: R Markdown chunk options

{r, echo=TRUE, message=FALSE}

60 / 62

(some) Chunk Options in R Markdown

echo = FALSE	hides the code
message = FALSE	hides messages
warning = FALSE	hides warning
error = TRUE	renders despite errors and displays the error
fig.cap = "Some figure caption"	creates a figure caption
fig.alt = "Some alternate text for figure"	creates alternate text for figures

61 / 62

Schedule for the Day

10:00 - 10:15 Introduction and Setup
10:15 - 11:15 Introduction to Toolkit and Data Basics
11:20 - 12:30 Data Visualization
1:00 - 1:45 Data Wrangling
1:45 - 2:15 Packages and External Datasets 2:15 - 2:30 Wrap Up
